FSA-FTx/BC#
Ecosystem for Sub-LVDS, SLVS, and SLVS-EC Image Sensors#
The following chapters provide the relevant technical information for Sub-LVDS, SLVS, and SLVS-EC sensor modules (FSM), according to the two supported data chains:
Data conversion to MIPI CSI-2 (D-PHY)
Native data streaming
Pure Sub-LVDS, SLVS, or SLVS-EC Chain#
The pure Sub-LVDS, SLVS, and SLVS-EC sensor setup consists of one or multiple FSMs with Sub-LVDS or SLVS output, each with an appropriate sensor-specific FSA and one FPA for the target processor board. No data signal conversion takes place. Only FSA and FPA designs shown in this chapter are compatible with each other. The FPA defines the maximum number of sensor modules that can be operated per processor board.
Figure: Block Diagram of components in Sub-LVDS, SLVS, and SLVS-EC Sensor Setup
FSA-FTx/BC-V1: FRAMOS Sensor Adapter for Sub-LVDS, SLVS, and SLVS-EC#
Connects FSM with Sub-LVDS, SLVS, or SLVS-EC output to FPA
Each FSA variant (“x”) might be FSM specific
Functional Blocks#
Signal routing
Voltage generation for image sensor
Power up sequence for image sensor

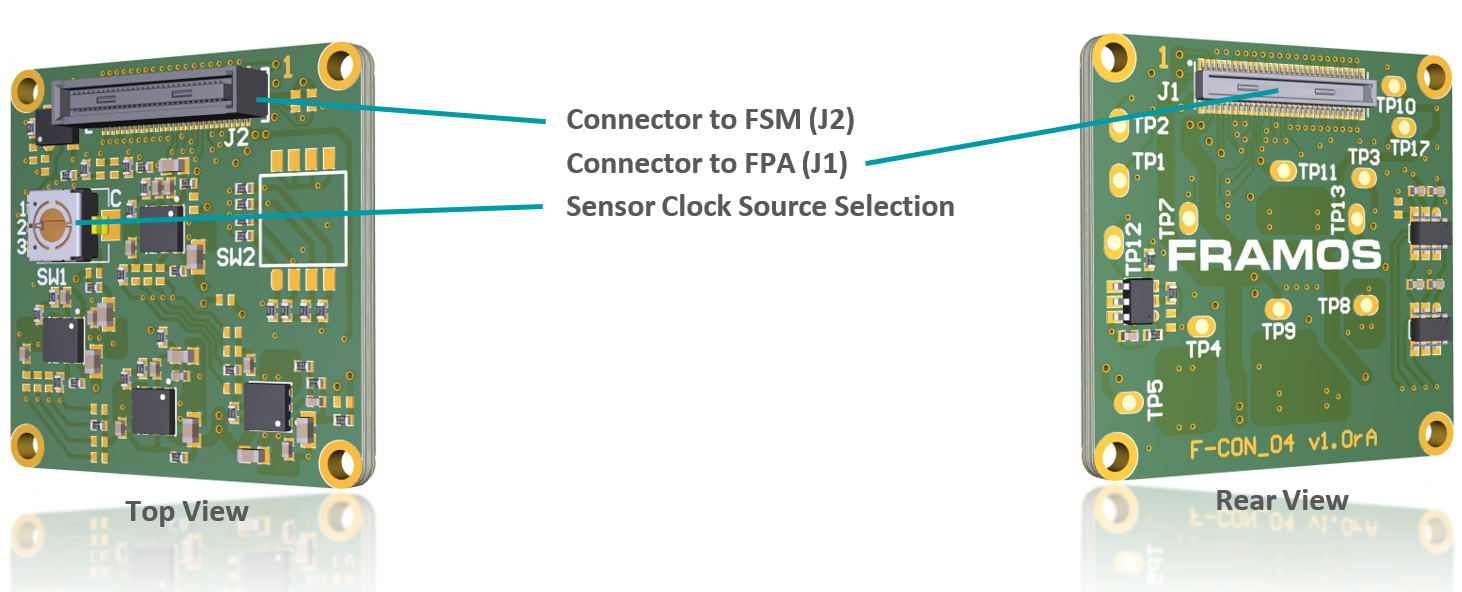

Interface Description#
SW1: Sensor Clock Source Selection#
Pos. |
Description |
|---|---|
1 |
Clock Provided from FSA (Default) |
2 |
External Clock 1 (MCLK0) |
3 |
External Clock 2 (MCLK1) |
Table: Selection of Sensor Clock Source on FSA-FTx/A-V1
J2: Connector to FSM#
Label |
J2 |
Type |
DF40HC(4.0)-60DS-0.4V |
Pinout |
According to FSM |
J1: Connector to FPA#
Label: J1
Type: Hirose DF40C-60DP-0.4V
Pinout:
Pin #| Name |
Pin # |
Name |
|
|---|---|---|---|
1 |
3V8_VDD |
2 |
1V8_VDD |
3 |
3V8_VDD |
4 |
1V8_VDD |
5 |
AUX_ANA |
6 |
AUX_DIG |
7 |
AUX_ANA |
8 |
AUX_DIG |
9 |
AUX_IF |
10 |
AUX_V |
11 |
GND |
12 |
GND |
13 |
GND |
14 |
GND |
15 |
I2C_0_SDA(SPI_MOSI) |
16 |
I2C_0_SCL(SPI_SCK) |
17 |
SDO |
18 |
XCE |
19 |
TOUT0 |
20 |
GPIO6 |
21 |
TOUT1 |
22 |
GPIO0(XMASTER) |
23 |
TOUT2 |
24 |
GPIO7 |
25 |
GPIO16 |
26 |
XTRIG1 |
27 |
GPIO14 |
28 |
XHS |
29 |
GPIO10 |
30 |
XVS |
31 |
GND |
32 |
GND |
33 |
RST_0 |
34 |
D_DATA_7_P |
35 |
MCLK_0 |
36 |
D_DATA_7_N |
37 |
GND |
38 |
GND |
39 |
D_DATA_6_P |
40 |
D_DATA_5_P |
41 |
D_DATA_6_N |
42 |
D_DATA_5_N |
43 |
GND |
44 |
GND |
45 |
D_DATA_4_P |
46 |
D_DATA_3_P |
47 |
D_DATA_4_N |
48 |
D_DATA_3_N |
49 |
GND |
50 |
GND |
51 |
D_DATA_2_P |
52 |
D_DATA_1_P |
53 |
D_DATA_2_N |
54 |
D_DATA_1_N |
55 |
GND |
56 |
GND |
57 |
D_DATA_0_P |
58 |
D_CLK_0_P |
59 |
D_DATA_0_N |
60 |
D_CLK_0_N |
Table: Pinout of FSA-FTx/BC-V1, connector to FRAMOS Processor Adapter (FPA) with Sub-LVDS, SLVS or SLVS-EC input
J1: Signal Description#
Pin |
Net name |
I/O |
Primary function description |
Connected to |
I/O Standard |
I/O State |
I/O DC Characteristic |
|---|---|---|---|---|---|---|---|
1 |
3V8_VDD |
Power |
3.8V Power Supply (Triggers FSA/FSM power-up) |
LDO_ICs, FSM |
3V8_VDD=3.7V-5.1V, max. 0.3A |
||
2 |
1V8_VDD |
Power |
1.8V Power Supply |
LDO_ICs, FSM |
1V8_VDD=1.7V-1.9V, max. 0.3A |
||
3 |
3V8_VDD |
Power |
3.8V Power Supply (Triggers FSA/FSM power-up) |
LDO_ICs, FSM |
3V8_VDD=3.7V-5.1V, max. 0.3A |
||
4 |
1V8_VDD |
Power |
1.8V Power Supply |
LDO_ICs, FSM |
1V8_VDD=1.7V-1.9V, max. 0.3A |
||
5 |
AUX_ANA |
Power |
Not Connected |
(FSM) |
|||
6 |
AUX_DIG |
Power |
Not Connected |
(FSM) |
|||
7 |
AUX_ANA |
Power |
Not Connected |
(FSM) |
|||
8 |
AUX_DIG |
Power |
Not Connected |
(FSM) |
|||
9 |
AUX_IF |
Power |
Not Connected |
(FSM) |
|||
10 |
AUX_V |
Power |
Not Connected |
(FSM) |
|||
11 |
GND |
GND |
Common Ground |
||||
12 |
GND |
GND |
Common Ground |
||||
13 |
GND |
GND |
Common Ground |
||||
14 |
GND |
GND |
Common Ground |
||||
15 |
I2C_0_SDA(SPI_MOSI) |
IN/OUT |
I2C SDA for FSM. Connected to Test Point (TP1) |
Test point, FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V, VOLmax=0.4V, VOHmin=1.4V |
|
16 |
I2C_0_SCL(SPI_SCK) |
IN |
I2C SCL for FSM. Connected to Test Point (TP2) |
Test point, FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V |
|
17 |
SDO |
OUT |
FSM |
LVCMOS18 (1.8V) |
VOLmax=0.4V, VOHmin=1.4V |
||
18 |
XCE |
IN |
FSM |
LVCMOS18 (1.8V) |
I2C: High, 4-wire: Low |
VILmax=0.36V, VIHmin=1.44V |
|
19 |
TOUT0 |
OUT |
TOUT0 from FSM |
FSM |
LVCMOS18 (1.8V) |
VOLmax=0.4V, VOHmin=1.4V |
|
20 |
GPIO6 |
IN |
Slave address select for FSM (SLAMODE0) |
FSM |
LVCMOS18 (1.8V) |
1A: High, 10: Low |
VILmax=0.36V, VIHmin=1.44V |
21 |
TOUT1 |
OUT |
TOUT1 from FSM |
FSM |
LVCMOS18 (1.8V) |
VOLmax=0.4V, VOHmin=1.4V |
|
22 |
GPIO0(XMASTER) |
IN |
XMASTER for FSM. Connected to Test Point (TP7) |
Test point, FSM |
LVCMOS18 (1.8V) |
Slave: High, Master: Low |
VILmax=0.36V, VIHmin=1.44V |
23 |
TOUT2 |
OUT |
TOUT2 from FSM |
FSM |
LVCMOS18 (1.8V) |
VOLmax=0.4V, VOHmin=1.4V |
|
24 |
GPIO7 |
IN |
XTRIG2 for FSM |
FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V |
|
25 |
GPIO16 |
IN |
Slave address select for FSM (SLAMODE1) |
FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V |
|
26 |
XTRIG1 |
IN |
XTRIG1 for FSM |
FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V |
|
27 |
GPIO14 |
IN |
Slave address select for FSM (SLAMODE2) |
FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V |
|
28 |
XHS |
IN/OUT |
XHS for FSM |
FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V, VOLmax=0.4V, VOHmin=1.4V |
|
29 |
GPIO10 |
IN |
OMODE for FSM |
FSM, (Power Sequencer) |
LVCMOS18 (1.8V) |
SLVS-EC: High, SLVS: Low |
VILmax=0.36V, VIHmin=1.44V |
30 |
XVS |
IN/OUT |
Multiple FSM synchronization |
FSM |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V, VOLmax=0.4V, VOHmin=1.4V |
|
31 |
GND |
GND |
Common Ground |
||||
32 |
GND |
GND |
Common Ground |
||||
33 |
RST_0 |
IN |
General reset for FSM |
Reset_IC |
LVCMOS18 (1.8V) |
Normal: High, Reset: Low |
VILmax=0.54V, VIHmin=1.26V |
34 |
D_DATA_7_P |
OUT |
LVDS output data (7, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
35 |
MCLK_0 |
IN CLK |
Master clock 0 (SW1 in pos 2 or 3) |
Rotary switch |
LVCMOS18 (1.8V) |
VILmax=0.36V, VIHmin=1.44V |
|
36 |
D_DATA_7_N |
OUT |
LVDS output data (7, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
37 |
GND |
GND |
Common Ground |
||||
38 |
GND |
GND |
Common Ground |
||||
39 |
D_DATA_6_P |
OUT |
LVDS output data (6, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
40 |
D_DATA_5_P |
OUT |
LVDS output data (5, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
41 |
D_DATA_6_N |
OUT |
LVDS output data (6, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
42 |
D_DATA_5_N |
OUT |
LVDS output data (5, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
43 |
GND |
GND |
Common Ground |
||||
44 |
GND |
GND |
Common Ground |
||||
45 |
D_DATA_4_P |
OUT |
LVDS output data (4, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
46 |
D_DATA_3_P |
OUT |
LVDS output data (3, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
47 |
D_DATA_4_N |
OUT |
LVDS output data (4, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
48 |
D_DATA_3_N |
OUT |
LVDS output data (3, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
49 |
GND |
GND |
Common Ground |
||||
50 |
GND |
GND |
Common Ground |
||||
51 |
D_DATA_2_P |
OUT |
LVDS output data (2, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
52 |
D_DATA_1_P |
OUT |
LVDS output data (1, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
53 |
D_DATA_2_N |
OUT |
LVDS output data (2, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
54 |
D_DATA_1_N |
OUT |
LVDS output data (1, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
55 |
GND |
GND |
Common Ground |
||||
56 |
GND |
GND |
Common Ground |
||||
57 |
D_DATA_0_P |
OUT |
LVDS output data (0, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
58 |
D_CLK_0_P |
OUT CLK |
LVDS output clock (0, P) |
FSM |
LVDS/SLVS/SLVS-EC |
||
59 |
D_DATA_0_N |
OUT |
LVDS output data (0, N) |
FSM |
LVDS/SLVS/SLVS-EC |
||
60 |
D_CLK_0_N |
OUT CLK |
LVDS output clock (0, N) |
FSM |
LVDS/SLVS/SLVS-EC |
TPx: Test Points#
Name |
Signal |
Name |
Signal |
Name |
Signal |
|---|---|---|---|---|---|
TP1 |
I2C_0_SDA (SPI_MOSI) |
TP7 |
IS_GPIO0 (XMASTER0) |
TP12 |
V_IF |
TP2 |
I2C_0_SCL (SPI_SCK) |
TP8 |
GND |
TP13 |
V_DIG |
TP3 |
IS_MCLK_0 |
TP9 |
3V8_VDD |
TP17 |
GND |
TP4 |
IS_RST_0 |
TP10 |
1V8_VDD |
||
TP5 |
V_ANA-1 |
TP11 |
V_ANA |
Table: Test Points on FSA-FTx/BC-V1
Technical Drawing#
Figure: Technical Drawing of FSA-FTx/BC-V1
